Fiber Chain Belt
Fiber Chain Belt is designed for high-strength lifting, securing, and mooring operations where lightweight performance and durability are essential. Constructed from ultra-high molecular weight polyethylene (UHMWPE), it offers exceptional tensile strength, low elongation, and outstanding resistance to abrasion, moisture, and chemicals. Its flexible structure ensures easy handling and installation, while the multi-layer build enhances durability for repeated heavy-duty use.
Features:
Material: UHMWPE high-strength fiber

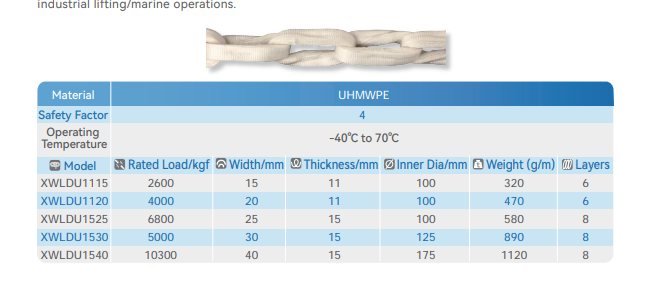

Model Range: XWLDU1115, XWLDU1120, XWLDU1525, XWLDU1530, XWLDU1540
Rated Load: 2,600 – 10,300 kgf
Width: 15 – 40 mm
Thickness: 11 – 15 mm
Inner Diameter: 100 – 175 mm
Weight: 320 – 1,120 g
Layers: 6 – 8 layers for enhanced strength
Safety Factor: 4
Operating Temperature: –40°C to 70°C
Performance: Lightweight, flexible, and corrosion-resistant
Applications: Marine, industrial lifting, mooring, and securing operations
Custom Options: Various sizes and lengths available
