Four-Strand Tail Rope
The Four-Strand Tail Rope is a critical link between underwater devices and control vessels. Constructed with Kevlar®or Vectran® fibers and reinforced with non-metallic materials, this tail rope is designed to reduce volume and weight while enhancing mobility, speed, and responsiveness. It offers a compact external diameter, lightweight handling, excellent anti-interference properties, and reliable performance even after repeated bending and stretching.
Key Features:
Materials: Kevlar® or Vectran® high-performance fibers
Design: Four-strand braided construction for strength and flexibility

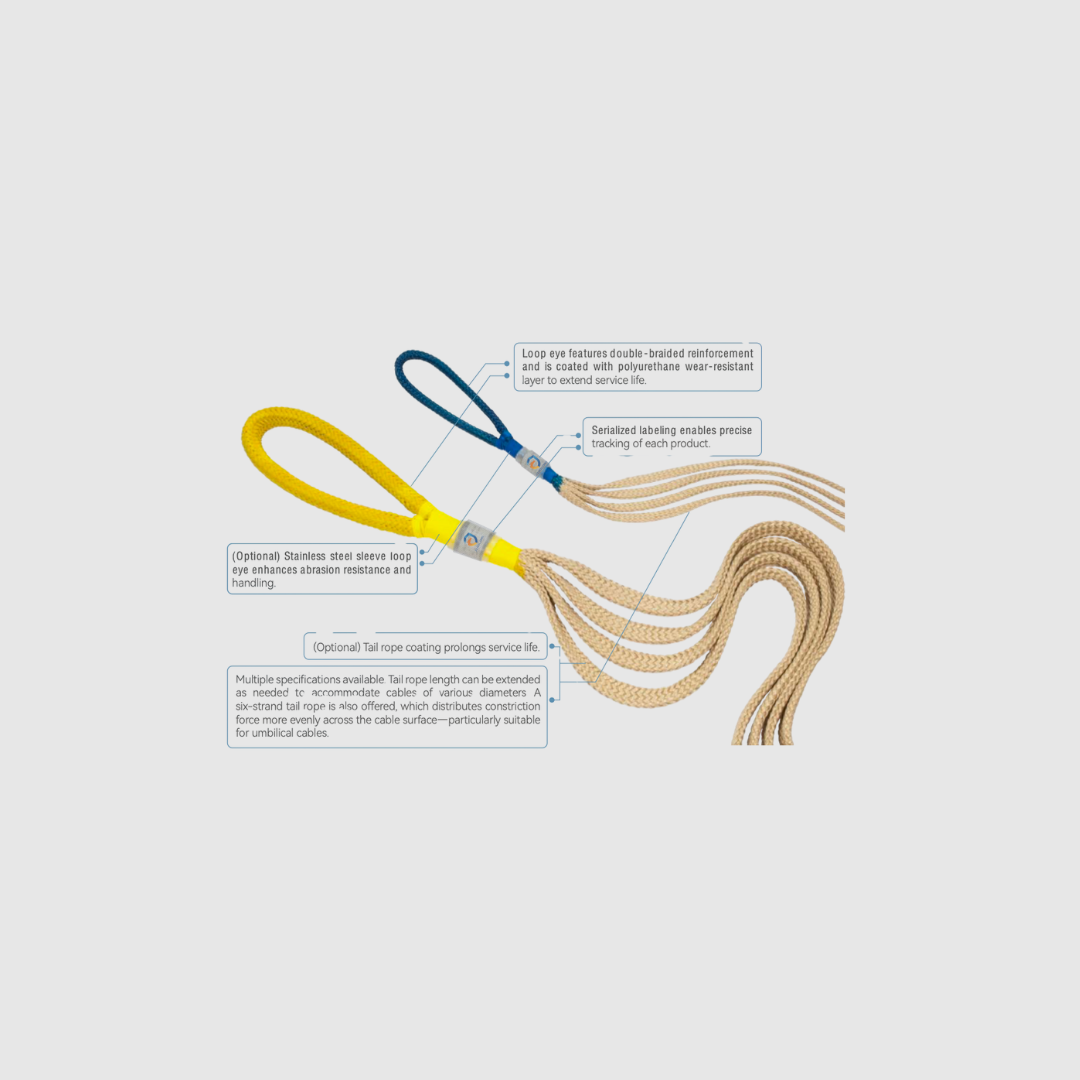

Loop Eye: Double-braided reinforcement with polyurethane wear-resistant coating for extended service life
Protection: Optional stainless steel sleeve loop eye for enhanced abrasion resistance; tail rope coating to prolong durability
Identification: Serialized labeling for accurate product tracking
Cable Compatibility: Available in multiple diameter ranges to fit various umbilical cable sizes
Applications: Underwater robotics, ROVs, marine survey systems, subsea instrumentation
Specifications:
Working Load: 500 – 2400 lb (228 – 1094 kg)
Breaking Strength: 1137 – 5456 kgf (2500 – 12000 lb)
Cable Diameter Range: 3 mm – 19 mm (depending on model)
Tail Rope Length: 4 ft – 6 ft (1.23 m – 1.83 m)
Loop Eye Length: 152 mm (6 in)
