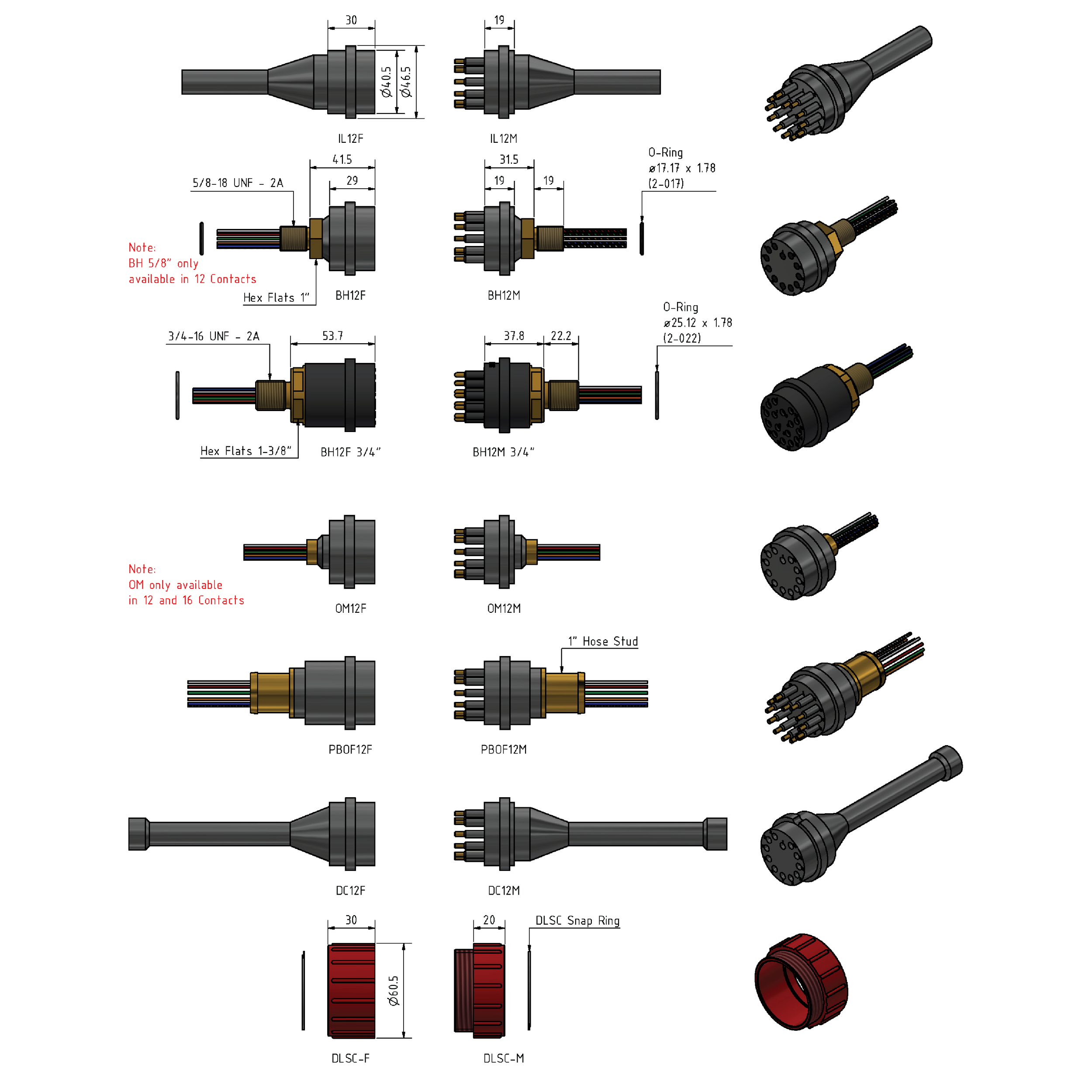

SubConn Circular - 12, 16 and 25 contacts
Connector specifications:
Voltage rating: 600 V DC/AC rms
12 and 16 contacts current rating: 10 A per contact (max 60 A per connector)
25 contacts current rating: 3 power contacts 10 A per contact, 22 signal contacts 5 A per contact (max 60 A per connector)
Insulation resistance: > 200 MΩ
Contact resistance: < 0.01 Ω
Wet matings: > 500
Temperature rating (water): - 4 to 60˚C, 25 to 140˚F
Temperature rating (air): - 40 to 60˚C, - 40 to 140˚F
Storage temperature rating: - 40 to 60˚C, - 40 to 140˚F
Qualified pressure tested: 1,400 bar, 20,300 psi (mated), 800 bar, 11,600 psi (open face)
Depth rating PEEK: 300 bar, 4,350 psi
